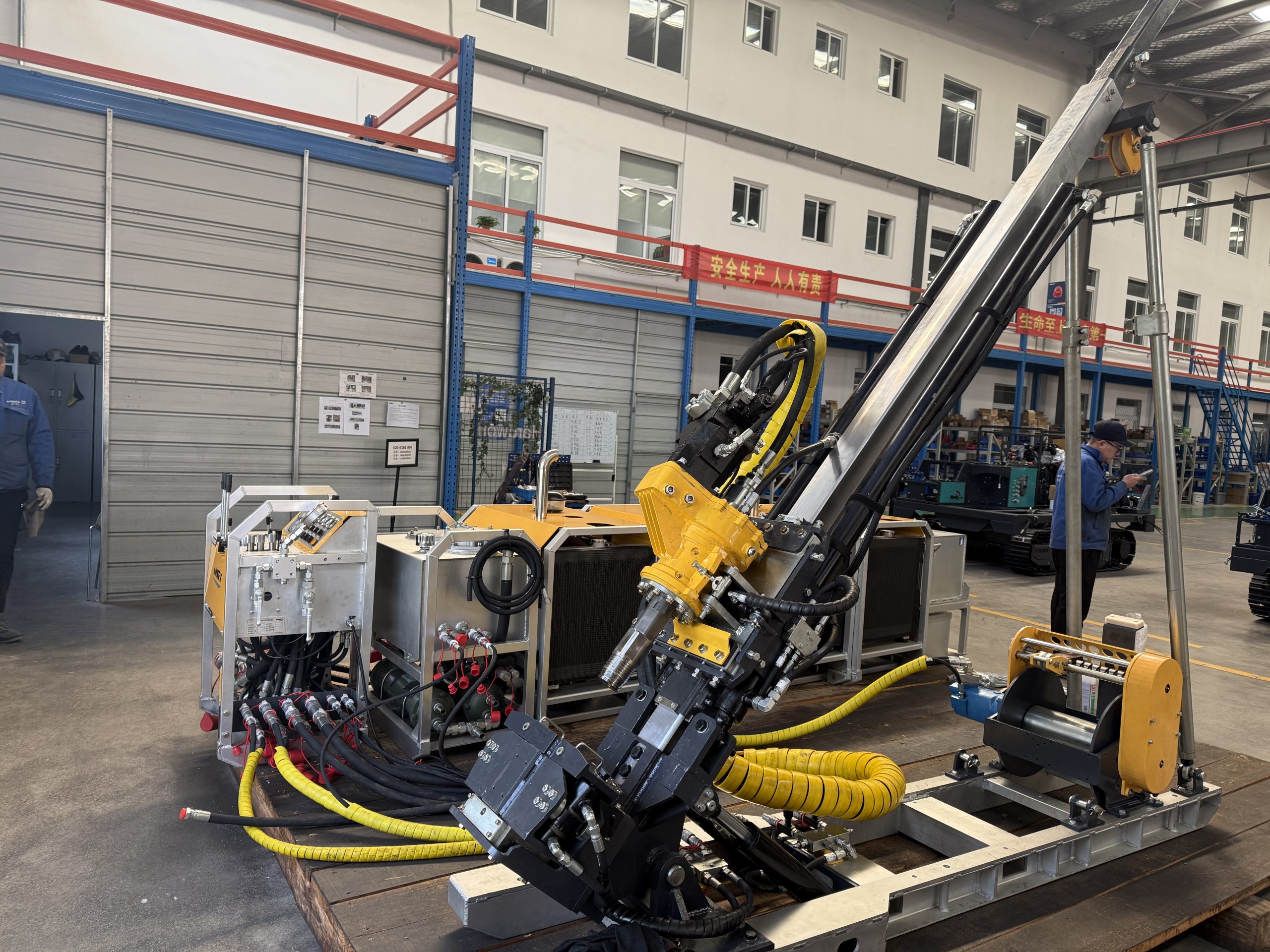

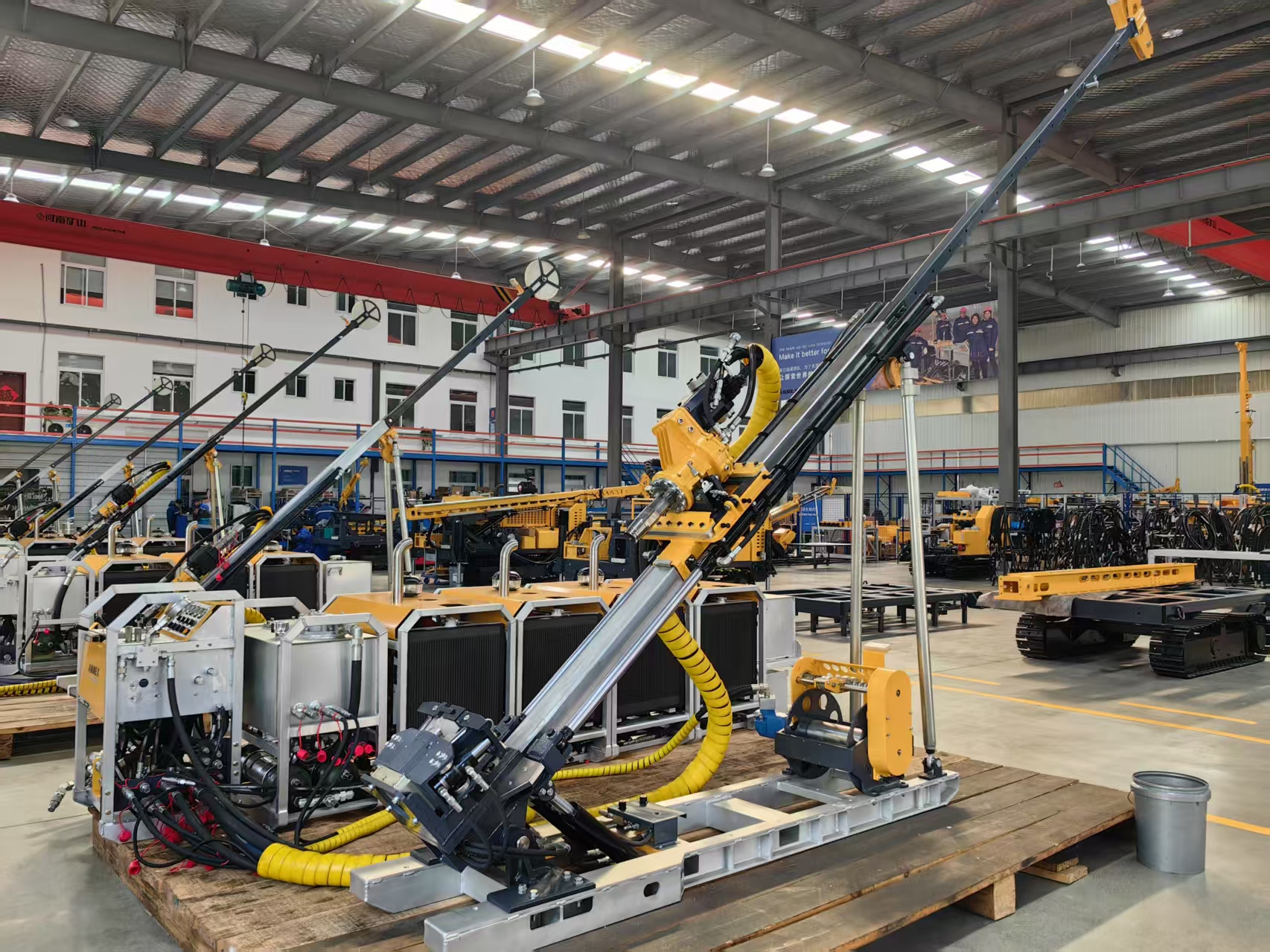

Modular Portable Drill

F1000DP

Overview

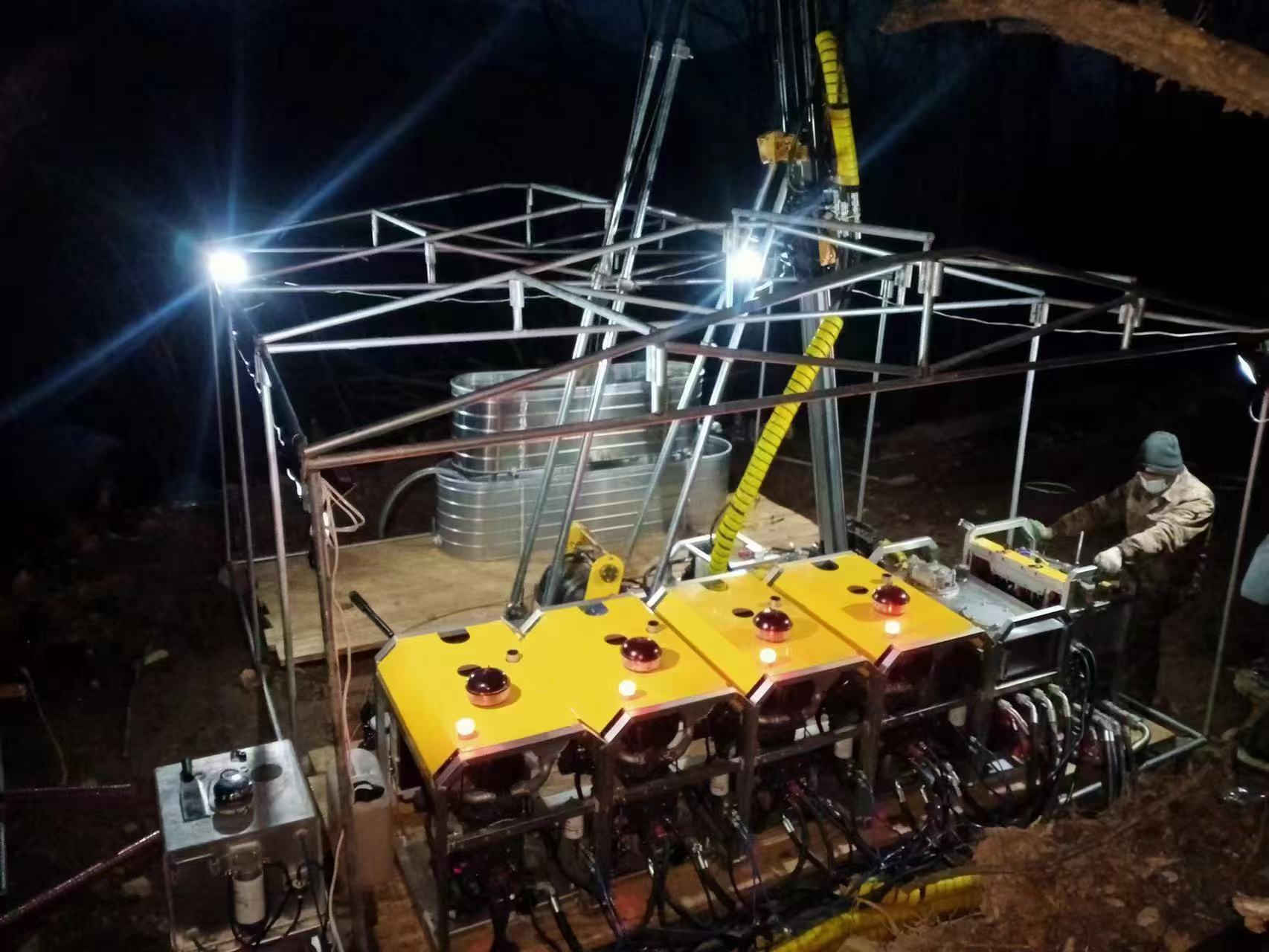

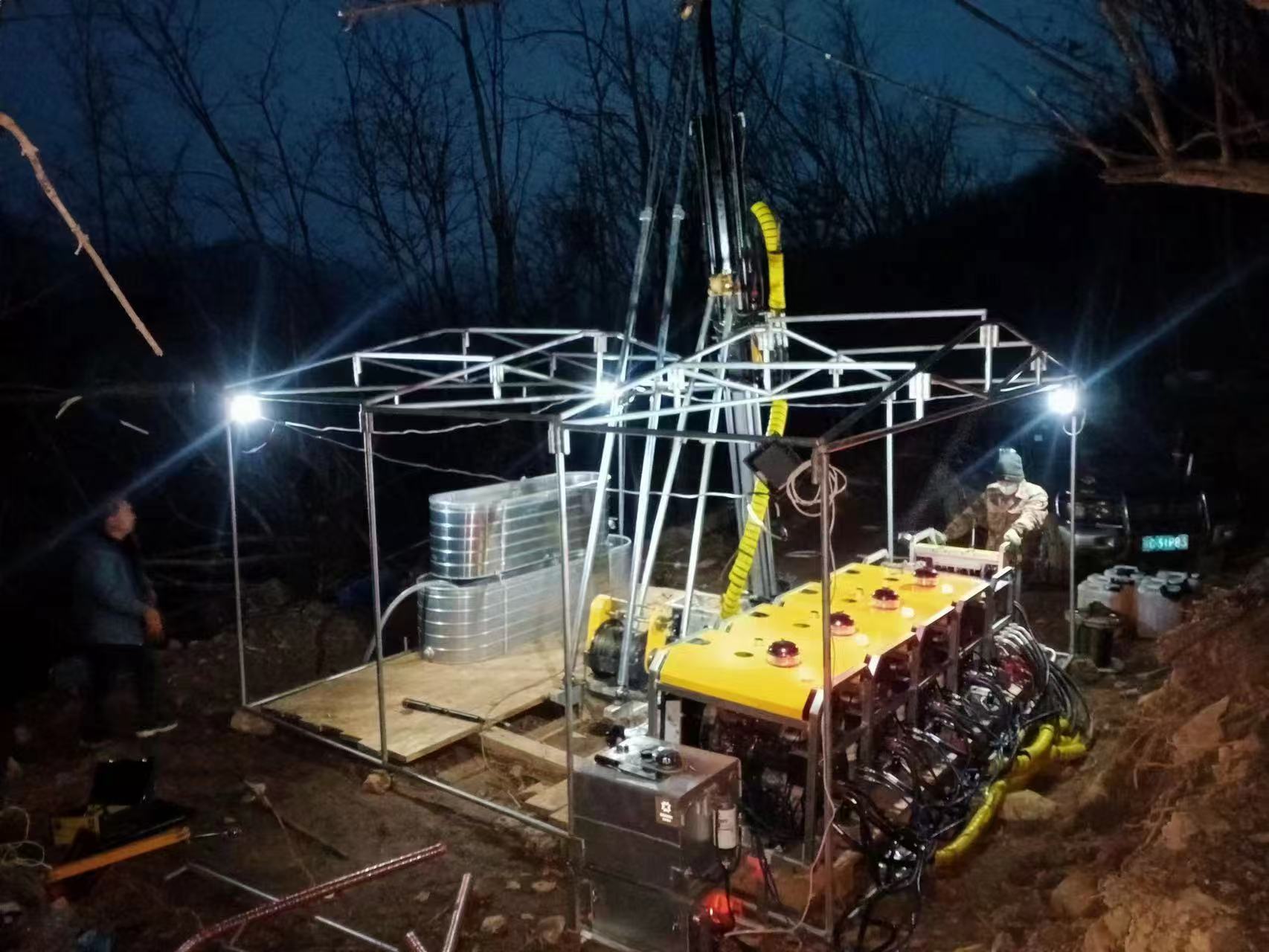

F1000DP is currently the most powerful model of the AMMEX Frontier portable drill series. Frontier drills are modular design works well within a 4mx4m platform. The structure is made of high-strength aluminium fabrications, ensuring high standards of toughness with limited weight of rig. When road-access is limited, the drills can be handled along the small trails by manpower, giving outstanding advantages in a variety of terrain conditions. The F1000DP drill is equipped with a compact top-drive auto-shift rotation head which offers excellent drilling torque and speed, ensuring outstanding performance for deep-hole portable drilling applications.

Features

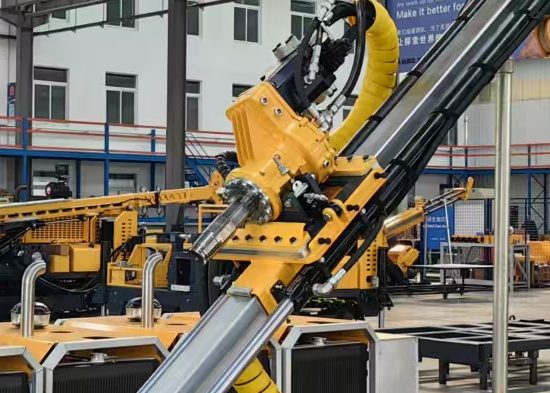

  • The compact top-drive rotation unit offers maximized torque and speed, suitable for variable deep-hole portable drilling applications.
  • The ergonomic control panel unit consists of all the power and hydraulic control systems. All powerpack operation is controlled on the panel unit requiring no need for operation of each individual engine.
  • The integrated hydraulic valve group utilizes modern technology of hydraulic distribution for the drilling and supportive functions ensuring highly reliable controllable performance of the drill.
  • With a unique design in the industry, the head carriage realizes real-time adjustment on sliding engagement, allowing constant feeding stability. Change of the wearing plates is extremely easy from outside of the carriage.
  • The Rod holder is hydraulic driven and weight-lock design with features of fast response, lightweight and flexible for operation.
  • The drilling operation is count-weighted, e.g., the hydraulic system balances the drill string which Water swivel is compact design and coaxial jet style, offering high wear resistance and easy maintenance.
Specifications for F1000DP
Power packKubota V1505T
Power rate4×33 KW
Rod sizeB/N/H
Drilling depth1000m (N)
Type of rotation headTop drive
Max rotation speed2000 RPM
Max torque2400 Nm
Max feeding force33 KN x2
Max pullback force56 KN x2
Wire line winch1300m capacity (5mm)
Rod holderHydraulic-driven, weight lock
Working weight2500 Kg
