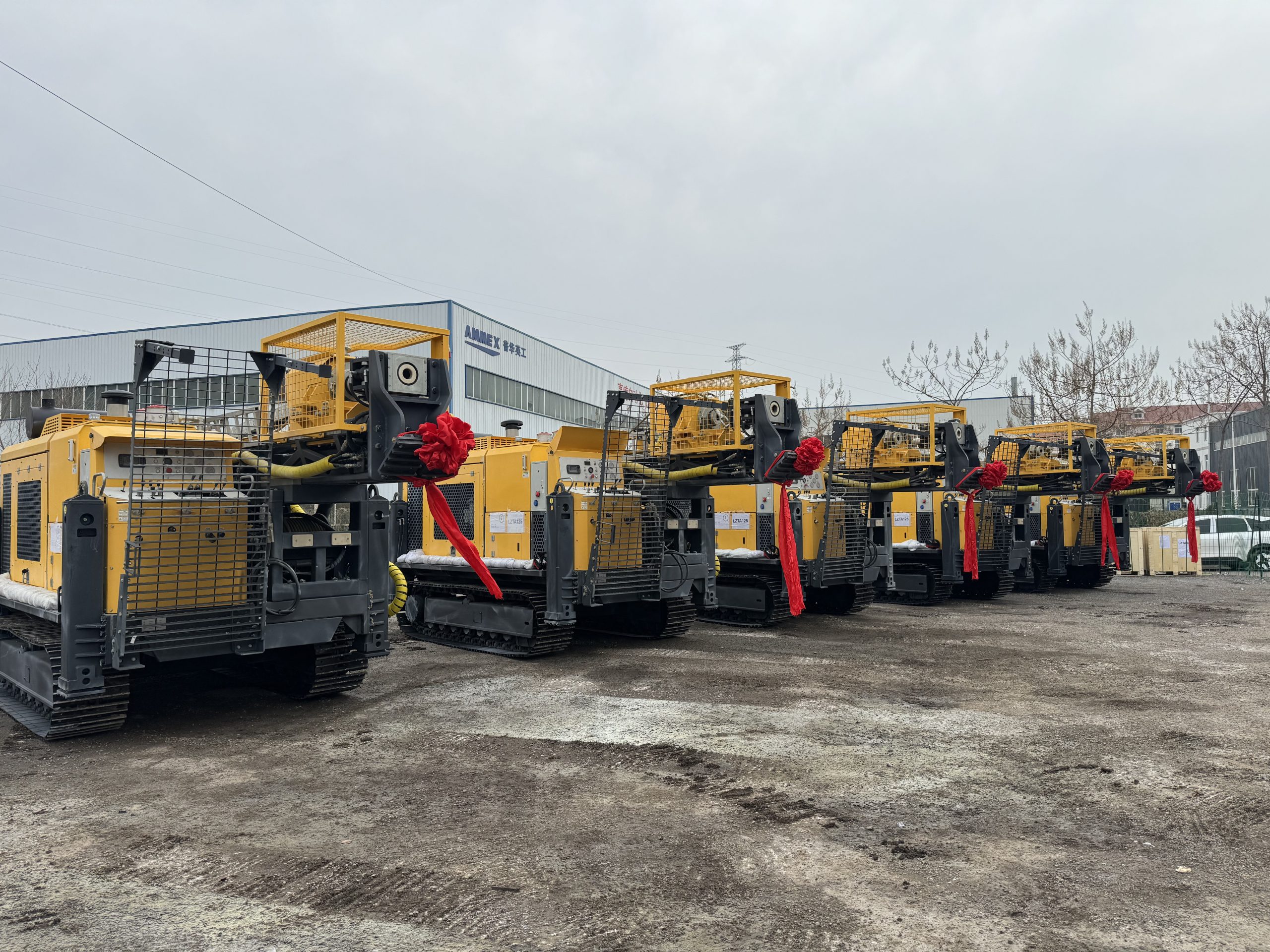

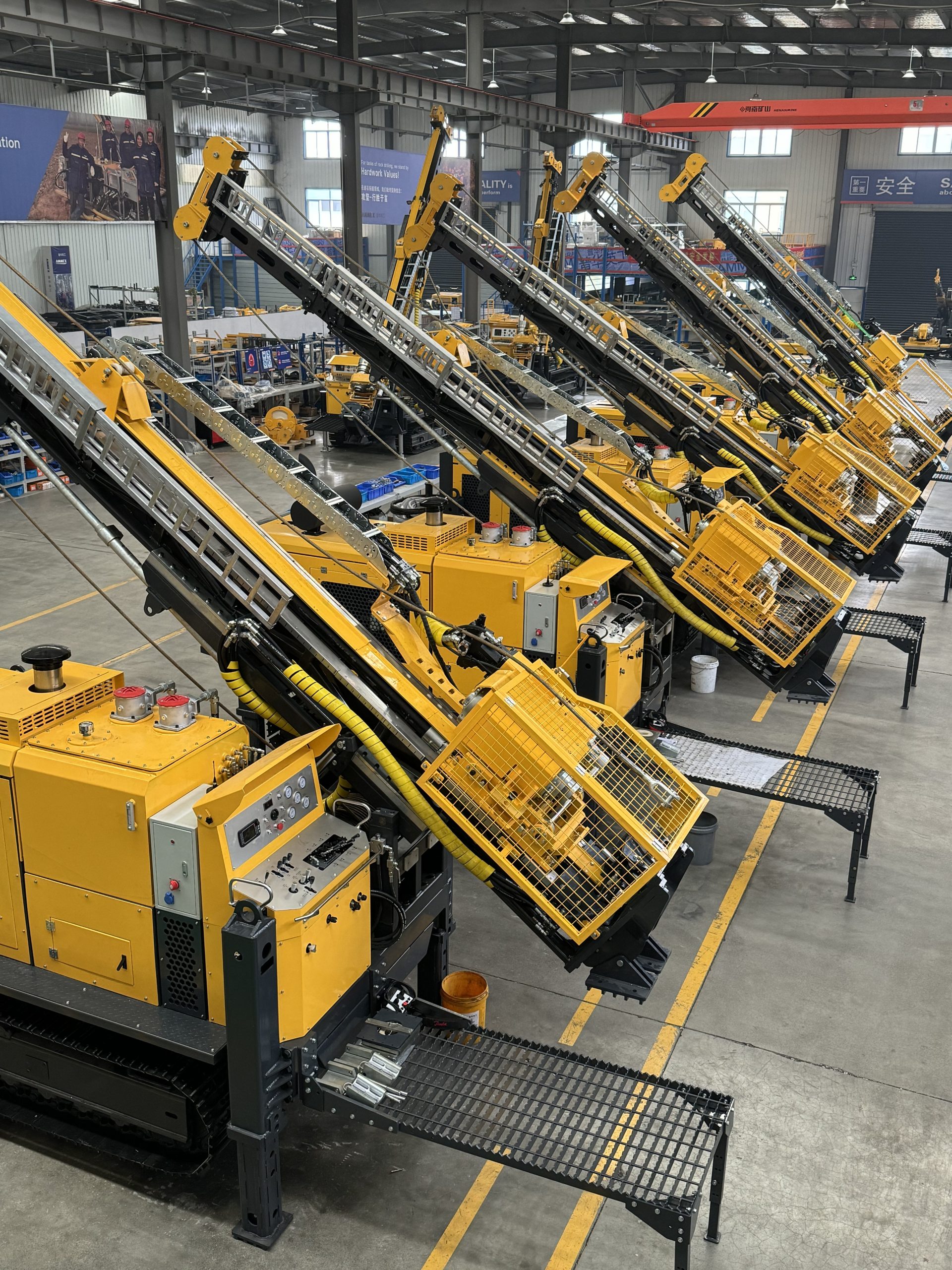

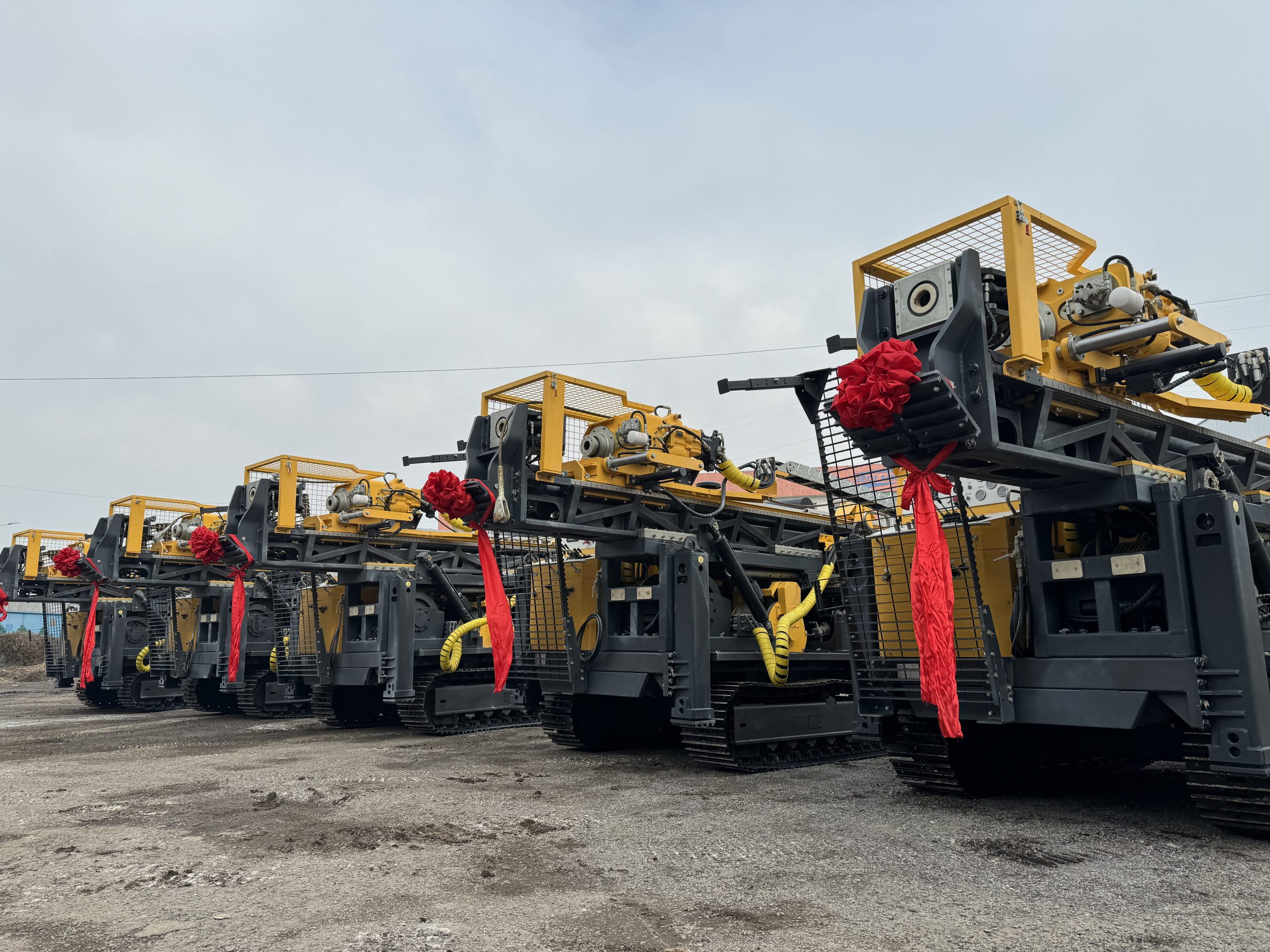

Surface Core Drill
CX2000 / CX2000DH
- Cummins QSB6.7 /QSB8.3 (Diesel)
- 210 KW / 240 KW
- N: 1800m /2000m (DH)
Overview
The CX2000 /CX2000DH fully represents world-class advanced technology of exploration core drilling equipment. The drill features a long-stoke direct feed system, a telescopic feed mast, an auto-sliding head and a powerful main winch. The well-designed hydraulic system and the high-standard working units ensure efficiency for various drilling challenges.
Features
- Canadian-origin Christensen rotation unit and Funk Gearbox achieving fast running speed with high torque output.
- Unique auto-shifting function of rotation unit offering great convenience for site operation.
- Powerful Main Hoist works efficiently and reliably offering accurate control on hoisting speed and braking safety.
- New telescopic mast with auto raising, extending and dumping functions offers easy setting up for both working and transportation process.
- Updated hydraulic rod holder with weight-lock function provides fast action of rod clamping, improved reliability and reduced service need.
- Radio control crawler track offers enhanced mobility and safety.
Specifications for CX2000 / CX2000DH
| Powerpack | 210 KW / 240 KW Diesel Engine |
| Rod size | B/N/H/P |
| Drilling depth | N:1800m /2000m(DH) |
| Rotation head | 4-speed transmission + Chuck |
| Max torque | 7600 Nm |
| Max pullback force | 158 KN |
| Main hoist | 180 KN fullback force |
| Crawler track | Heavy-duty, radio control |
– Water Pump
– Mud Mixer
– Flow Meter
– Winter Cabin
