Overview
The CX1200 /EX1200 (DH) is a compact-design high-maneuverable core drill suitable for medium-depth drilling tasks. The drill reflects industry-edge advanced technology of exploration core drilling equipment. The well-designed hydraulic system and the high-standard working units ensure efficiency for various drilling challenges.
Features
- Ergonomic and user-friendly control panel — enables the operator to work on ground level with all flexibilities to ensure productive drilling.
- Foldable telescopic mast — provides easy set-up for working while being compact size for transportation.
- Hydraulic levelling jacks — make the rig easy to set up. Radio control for jacking is available as optional feature.
- Top-drive (standard) / Chuck-type (DH) rotation head — offers high expectation for performance and reliability. Chuck type head is available as optional feature.
- Weight-lock hydraulic rod holder — provides fast action of rod clamping, improved reliability and reduced service need.
- Radio control crawler track — offers mobility and safety.
Specifications for CX1200 / EX1200
| Powerpack | Cummins / WEICHAI (Diesel) |
| Power rate | 153 KW |
| Rod size | B/N/H/P |
| Drilling depth | N: 1000m |
| Type of rotation head | Gear-driven + Chuck (DH) |
| Max rotation speed | 1200 RPM |
| Max torque (Normal Drilling) | 2300 Nm |
| Max torque (High load) | 4300 Nm |
| Max feeding force | 65 KN |
| Max pullback force | 138 KN |
| Wire line winch | 1300m capacity (6mm) |
| Crawler track | Heavy-duty, radio control |
| Working weight | 8550 Kg /9000 Kg |
Check more information with AMMEX representatives..
Video Story

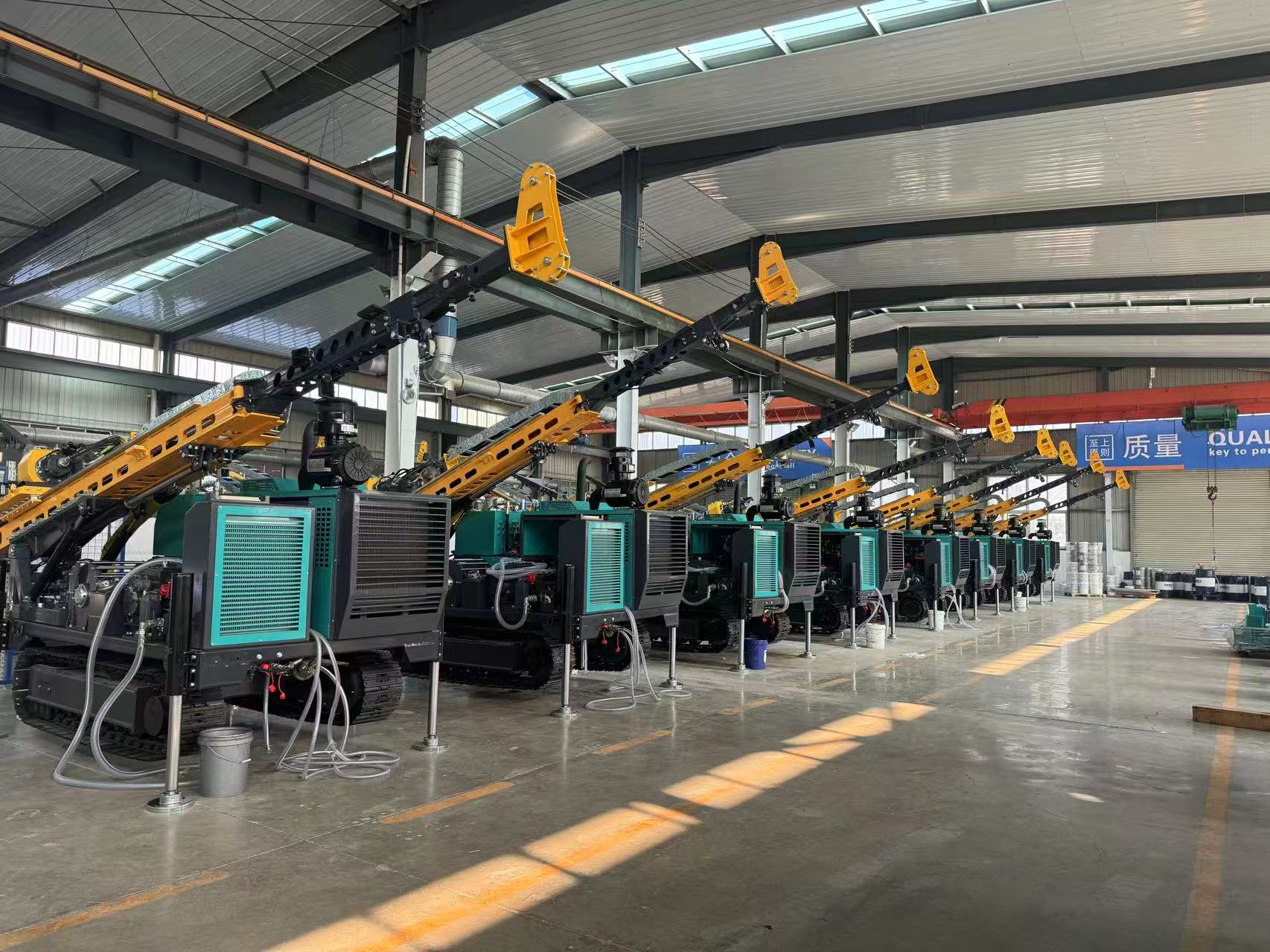

EX1200 at AMMEX factory, Dec., 2024
